ADAM-5081-AE - Advantech CIRCUIT MODULE, 4-ch High Speed Counter/Frequency Module

ADAM-5081-AE - Advantech
ADAM-5081-AE

Price: $497.00
Manufacturer SKU: ADAM-5081-AE


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-5081-AE
Qty:

Description Technical Specs

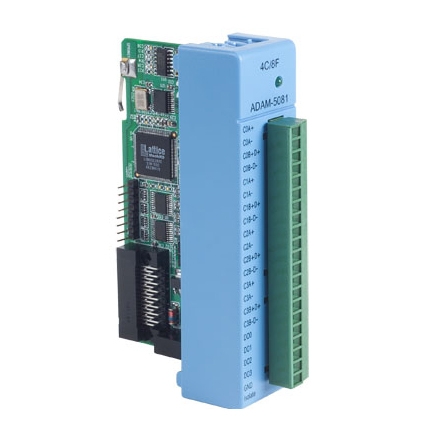

ADAM-5081-AE - Advantech CIRCUIT MODULE, 4-ch High Speed Counter/Frequency Module
ADAM-5081 is a 4-Channel High Speed Counter/Frequency Module, users can select either counter or frequency mode for data input. This high speed module can support a high input frequency from 5Hz to 1MHz. And it provide a noise filter function 1~65000μsec. ADAM-5081 offers users flexible and versatile applications such as counter, frequency, alarm setting, Up / Down, Up, A/B phase or Bi-direction Functions.

4-ch High Speed Counter/Frequency Module
  • Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency
  • Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.
  • Minimum Pulse Width: 1μ sec. (Frequency/Counter Mode)
  • Isolated Voltage: 2500 Vdc
  • Programmable Digital Noise Filter: 1~65000μ sec.
  • 4 channels for Counter, 8 channels for Frequency
  • Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag
pdfDownload the ADAM-5081-AE brochure in *.pdf format
