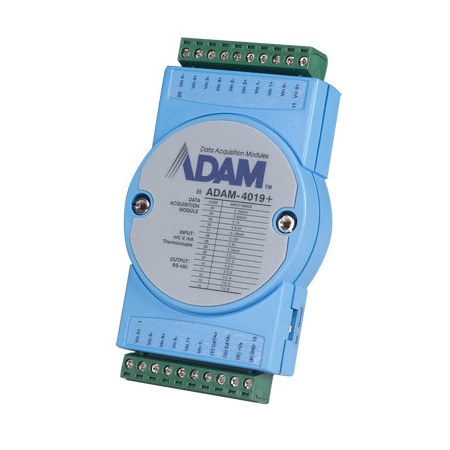

ADAM-4019+-F - Advantech CIRCUIT MODULE, 8-Channel Universal Analog Input Module

ADAM-4019+-F - Advantech
ADAM-4019+-F

Price: $468.90
Manufacturer SKU: ADAM-4019+-F


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: ADAM-4019-F
Qty:

Description Technical Specs

ADAM-4019+-F - Advantech CIRCUIT MODULE, 8-Channel Universal Analog Input Module
ADAM-4019+ is an 8-channel Universal Analog Input Module. The new module improves over its predecessor ADAM-4019 with a 4~20 mA input range, and a burnout detection function. Its mixed input range design supports individual configuration for each channel to save costs and space in applications. The other frequently used input ranges include +/-10V, mV, and thermocouple, which are all well-integrated in this model. It also supports burnout detection so that any sensor failures can be detected in advance. For easier control, ADAM-4019+ provides not only ADAM ASCII commands, but also the Modbus/RTU protocol for satisfying different application demands.

8-ch Universal Analog Input Module with Modbus
  • Supports 4~20 mA
  • Software configurable for mV, V, mA or Thermocouple inputs
  • 16-bit resolution
  • Isolation voltage 3000 VDC
  • Supports Modbus/RTU Protocol
  • Burn-out detection function
pdfDownload the ADAM-4019+-F brochure in *.pdf format
