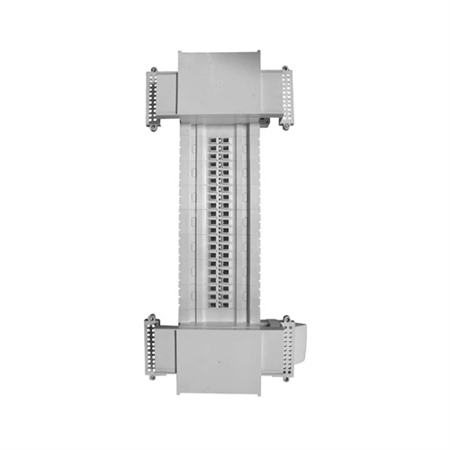

PS1-60-16SP - ABB PS1/60/16SP, PS1/60/16SP BUSBAR

PS1-60-16SP - ABB
PS1-60-16SP

Price: $53.66
Returnable: NOT RETURNABLE
Manufacturer SKU: PS1/60/16SP
Manufacturer ID: 804325813419


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: PS1-60-16SP
Qty:

Description

PS1-60-16SP - ABB PS1/60/16SP, PS1/60/16SP BUSBAR

Proline Panelboard is the electrical industry's first current limiting, touch safe, fully coordinated UL 67 panelboard.

The ProLine Panelboard provides an innovative and high performance approach to branch circuit protection. For those industries and service providers where reliablitly and 24/7 uptime is critical, the Proline Panelboard with Proline Circuit Breakers is the perfect solution. Safer, more reliable with full coordination are the benefits this design delivers.

ABB developed the ProLine Panelboard to provide current limiting branch circuit protection for the applications where reliability matters most. The ProLine Panelboard utilizes the world class, high performance breaker technology for which ABB is known. Critical power, banking and medical institutions are just a few of the industries that demand the power reliability that the ProLine Panelboard offers; to exceed their power distribution needs.

Electrical:
  • UL67
  • 225A and 400A
  • 12, 24, 42 Circuit
  • Up to 240V & 277/480Y VAC
  • 35 kAIC Series rating (240V)
  • 14 kAIC Series rating (277/480V)
  • Single or Double Ended Incoming
  • Fully Rated Sub-Fed Breaker
  • Fully Rated Feed Through Lugs
  • 1A to 100A Branch Breakers
  • Fully Rated Sub Fed Lugs or Breaker
  • K or Z Trip Curve Breakers
  • N1 Enclosure

Features:
  • Breakers UL current Limiting
  • Fully Coordinated
  • Touch Safe
  • Pluggable Breaker with Non-Energized, Bolt-On Screw
pdfDownload the ProLine Panelboard brochure in *.pdf format
