3004-263 - Applied Motion Products Encoder Extension Cable 3 foot, Compatible with the STM17R and STM23R integrated steppers with encoder options

3004-263 - Applied Motion Products
3004-263

Price: $22.80
Manufacturer SKU: 3004-263


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: 3004-263
Qty:

Description

The 3004-263 encoder extension cable is designed for use with STM17R and STM23R integrated steppers with incremental encoders mounted to the rear shafts. This includes the following integrated stepper part numbers:

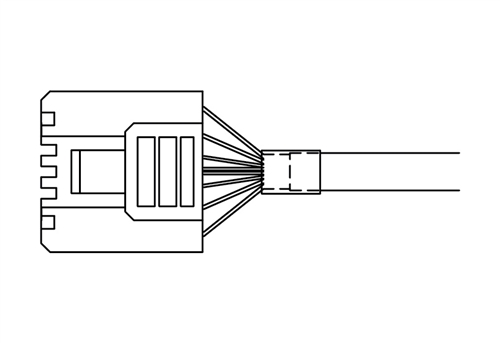

An incremental encoder is externally mounted to the rear shaft of an STM17R or STM23R integrated stepper and the 3004-263 cable is used to connect this encoder to the user’s step & direction controller. The 3004-263 cable provides a mating connection for the encoder at one end and flying leads at the other end.

  • Compatible with the STM17R and STM23R integrated steppers with encoder options
  • Connects to incremental encoder on one end
  • Flying leads on other end for connecting to external controller
