30-3013A1N12A - Edwards Signaling Explosionproof Smoke Detector

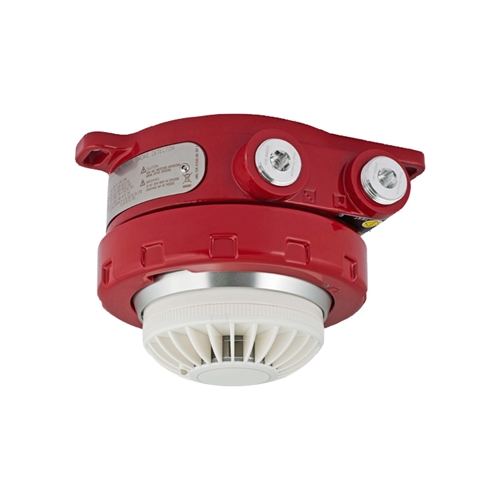

Model 30-3013 detectors are high performance smoke detectors built for use in hazardous locations. They are corrosion-resistant and feature a non-conducting aluminum alloy retaining ring that protects the detector sensor against the effects of explosions and other catastrophic events.

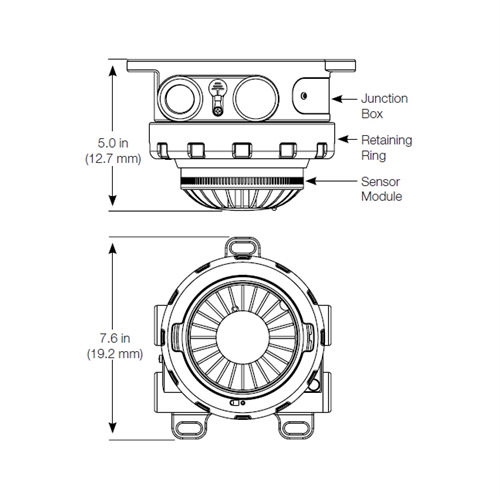

The retaining ring mounts securely to a companion junction box, which offers several common port configurations for conduit connection. Together, the ring and box provide a sturdy protective shell for the detector head.
The 30-3013’s advanced optical detector performs effectively with slow-burning smoldering fires, as well as quickly rising flames. The sensor module is hot-swappable and intrinsically safe while powered. This allows maintenance work to be performed without having to declassify the protected area as a hazardous location.
An integrated Trouble relay ensures that the 30-3013 detector always performs as expected. On-board Alarm and Auxiliary relays integrate easily with EDWARDS fire systems, as well as auxiliary equipment such as dampers and door closers.
- FM Approved for smoke detection in Class I, Division 1 hazardous locations
- Class I Div 1 Groups B, C, D T4
- Class I Div 2 Groups A, B, C, D T4
- Class I Zone 1 AEX db Ia IIC T4 Gb
- Tamb -20C to +65C
- IP44
- IECEx Zone approved
- IECEx FMG15.0014X
- Ex db ia IIC T4 Gb
- Tamb -20C to +65C
- IP44
- IP44 ingress protection level suitable for onshore or offshore requirements
Standard Features
- High performance optical smoke detection
- Built-in 0-20 mA output for easy Distributed Control System (DCS) integration
- Self diagnostics for reliable operation
- Alarm, Auxiliary, and Trouble relays for annunciator and control panel connection
- On-board LED provides local annunciation
- Non-latching operation
- Convenient magnetic switch for manual testing
- FM Approved for smoke detection in Class I, Division 1 hazardous locations
- IECEx Zone approved
- IP44 ingress protection level suitable for onshore or offshore requirements
 Download the 30-3013A1N12A specification sheet in *.pdf format
| Operating Voltage |
12-30 Vdc (24 Vdc nominal) |
| Power Consumption |
3.5 watts maximum (2.75 watts at 24 Vdc) |
| Smoke Alarm Relay |
Form C, 5 amperes at 30 Vdc: normally open/normally closed contacts and normally deenergized operation. |
| Trouble Relay |
Form A, 5 amperes at 30 Vdc: normally open contacts and normally energized operation. |
| Auxiliary Relay |
Form C, 5 amperes at 30 Vdc: normally open/normally closed contacts and normally de-energized operation. |
| Temperature Range |
Operating: -20°C to +65°C (-4°F to +149°F) Storage: -55°C to +70°C (-67°F to +158°F) |
| Humidity Range |
5 to 95% relative humidity. |
| Ingress Protection |
IP44 (ceiling mount application only) |
| Current Output |
0-20 mA (±0.3 mA) dc current, with maximum loop resistance of 300 ohms from 12-17.9 Vdc, 500 ohms from 18 to 19.9 Vdc, and 600 ohms. |

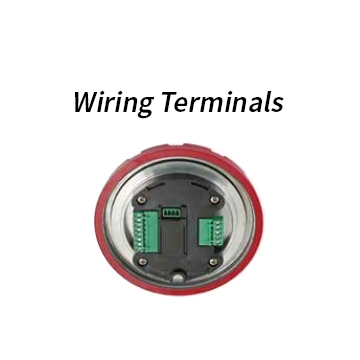

| Terminals |
Rated for 14-18 AWG or 2.5-0.75 mm2 wire. |
| Thread Options |
3/4 inch NPT or M25 |
| Enclosure Material |
Detector: Polycarbonate/ABS
Junction Box: Copper-free aluminum (painted) |
| FM Approvals |
Class I Div 1 Groups B, C, D T4 Class I Div 2 Groups A, B, C, D T4 Class I Zone 1 AEX db ia IIC T4 Gb Tamb -20°C to +65°C
IP44 |
| IECEx Approvals |
IECEx FMG15.0014X Ex db ia IIC T4 Gb Tamb -20°C to +65°C IP44 |
|
|
|
 |
|
 |
|
