235P - SymCom 1-Phase Pumpsaverplus 230V 5-15HP CT Required
The Model 235P Family

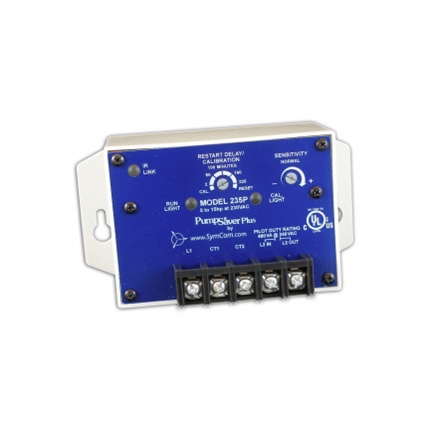

The Model 235P PumpSaver®Plus is designed to protect single-phase pumps from dry-well, dead-head, jammed impeller and overvoltage and undervoltage conditions. The PumpSaver®Plus Model 235P protects 5-15 hp, 230V pumps.
A calibration adjustment allows the Model 235P to be calibrated to your specific pumping applications, there-by reducing the possibility of false or nuisance tripping. A unique microcontroller-based voltage and current-sensing circuit constantly monitors the incoming power for fluctuations causing overcurrent and undercurrent. When an abnormality, such as loss of suction is detected, the PumpSaver®Plus deactivates its output relay and di-rectly disconnects the pump motor. The PumpSaver®Plus then begins its user-selectable "Restart Delay" (dry-well recovery) timer. When the timer expires or power is re-moved and reapplied, the PumpSaver®Plus reactivates its output relay and allows the pump to turn back on.
The Model 235P communicates with a hand-held diag-nostics tool called the Informer (sold separately). The Informer displays 15 parameters including calibration points, trip points, running points, and last faults.
An external current transformer is required for opera-tion.
NOTE: The PumpSaverPlus models have a sensitivity adjustment for the dry-well trip point. After calibration is done, you can adjust the sensitivity for the dry-well/dead-head trip point from 70-90% of the full load. This makes the unit even more adaptable to varying pumping applications. If you have a very low producing well, you increase the sensitivity closer to the 90% mark, or if you have a very heavy producing well, you would decrease the sensitivity around the 70% mark.
| Functional Specifications |
|
Adjustments/Settings
Overcurrent
Underload (dry-well)
Overvoltage
Undervoltage
Number of restarts allowed in a 60-second period (rapid-cycling)
Trip Delay Times
Overcurrent
Dry-well
Restart Delay Times
Over/undervoltage
All other faults (dry-well recovery timer) |
125% of calibration point
Adjustable (70 - 90% of calibrated run power)
265VAC
190VAC
4
5 seconds
4 seconds
2 seconds
Manual, 2-225 Minutes |
| Input Characteristics |
|
Supply Voltage:
Load Range:
Frequency: |
230VAC
5 - 15 hp (external current transformer required)
50/60Hz (Note: 50Hz will increase all delay timers by 20%) |
| Output Characteristics |
|
| Output Contact Rating-SPST |
A300, 720VA@240VAC General Purpose (10 amps max.) |
| General Characteristics |
|
Operating Temperature
Maximum Input Power
Wire Gauge
Terminal Torque
Standards Passed
Electrostatic Discharge (ESD)
Surge Immunity
Safety Marks
cUL Listed
Dimensions Weight Mounting Methods |
-40° to 55° C (-40° to 131° F)
5 W
Solid or Stranded 10 - 22AWG
13 in.-lbs.
IEC 61000-4-2, Level 2, 4kV contact, 6kV air
IEC 61000-4-5, Level 4, 4kV line-to-line and line-to-ground
UL508, C22.2 No. 14
5.26" W x 2.93" H x 2.90" D
14 oz.
#8 screws |
