201-200-SP - SymCom 1-Phase Plug-In Voltage Monitor 190-240V
201-200-SP - SymCom
201-200-SP

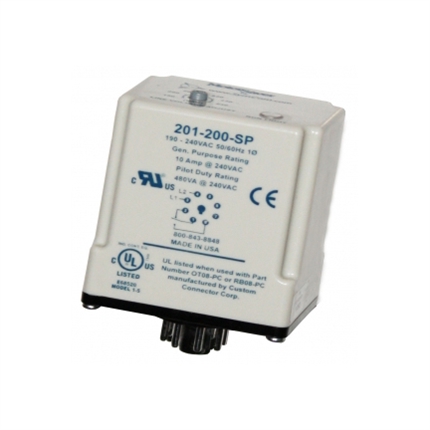

This is a family photo and may not be an accurate representation of the product.

Price: $107.03
Manufacturer SKU: 201-200-SP


Free Shipping
Availability: Usually Ships in 3 to 5 Days
Part Number: 201-200-SP
Qty:

Description

201-200-SP - SymCom 1-Phase Plug-In Voltage Monitor 190-240V

The Model 201-xxx-SP
Is an 8-pin octal-base, plug-in voltage monitor designed to protect single-phase motors regardless of size. The 201-100-SP is used on 95-120VAC, 50/60Hz motors to prevent damage caused by low voltage. The Model 201-200-SP is used on 190-240VAC, 50/60Hz motors. The 201-200-SP-T-9 is a pin-for-pin replacement for a Time Mark® #260 Series voltage monitor. High voltage protection is included in the 201-200-SP-T-9.

The unique microcontroller-based voltage and voltage-sensing circuit constantly monitors the voltage to detect harmful power line conditions. When a harmful condition is detected, the MotorSaver's output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to an acceptable level and a specified amount of time has elapsed (restart delay). The trip delay prevents nuisance tripping due to rapidly fluctuating power line conditions.

Features:

  • Low voltage protection
  • Diagnostic LED
  • 8-pin plug in; DIN rail or surface mount

Auxiliary Products:

  • 8-pin octal socket P/N: CT0T08-PC
pdfDownload the The SymCom Product Line catalog in *.pdf format
pdfDownload the SymCom Overview brochure in *.pdf format
pdfDownload the Single-Phase Voltage Monitors datasheet in *.pdf format
