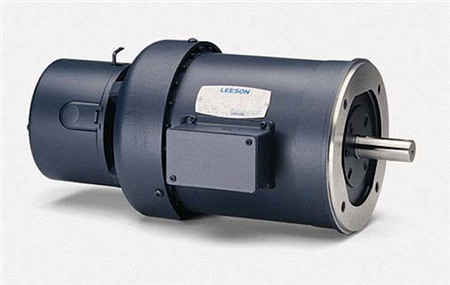

132480-00 - Leeson 132480.00 5HP 1800RPM. 184TC, TEFC, 230/460V, 3PH, 60HZ, CONT, 60C, 1.15SF, CFACE (NO BASE), BRAKEMOTOR

132480-00 - Leeson
132480.00

Returnable: NOT RETURNABLE
Manufacturer SKU: 132480.00
Manufacturer ID: C184T17FC55A


Availability: Usually Ships in 1 to 2 Weeks
Part Number: 132480-00
Call, Email, or Live Chat for Pricing or to Order

Description

Please note that this product does NOT qualify for free shipping and may require truck freight.
This Product Ships PREPAID and ADD Only!

LEESON 132480.00
Engineering Data
Volts 230 Volts 460 Volts
F.L. Amps 12.6 F.L. Amps 6.3 F.L. Amps
S. F Amps 14.4 S. F Amps 7.2 S. F Amps
RPM 1800 Hertz 60
HP 5 Duty CONTINUOUS TYPE TF
KW 3.7
Frame 184TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B
 Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 89.5 Eff 75%
PF 83
UL Yes CSA Yes Bearing OPE 6205
CC Number
CE Yes Bearing PE 6206
Load Type
Inverter Type
Speed Range NONE
Motor Wt. 108 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 081299 Mounting ROUND Rotation REV
Assembly
Shaft Dia.
Ext. Diag.
Cust Part No
Outline
Ext. Diag2
Packaging F

Winding T84170
Carton Label INDIVIDUAL GROUP: 3
Iris
Paint BLUE - LEESON (ENAMEL) Test Card 03
Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection
Rework Status Rework TYPE
Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code
FORCE
Class
GROUP:
VDC
Class
GROUP:
ADC
Brake Coil OHMs @25 C
Performance
Torque UOM LB-FT Inertia(WK²) .485 LB-FT^2
Torque 14.96(Full Load) 50.2(Break Down) 29.8(Pull Up) 30.1(Locked Rotor)
CURRENT (amps) 6.3(Full Load) 0(Break Down) 0(Pull Up) 49(Locked Rotor)
Efficiency (%) 0(Full Load) 90.2(75% Load) 88.9(50% Load)
PowerFactor 0(Full Load) 79.4(75% Load) 70.9(50% Load)
Load Curve Data @60 Hz, 460 Volts, 5 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 2.4 0.3 1798 0 0 6.8 0 0
0.25 2.8 1.089 1790 3.68 85.9 48.8 0 0
0.5 3.72 2.1 1779 7.39 88.9 70.9 0 0
0.75 4.9 3.1 1768 11.13 90.2 79.4 0 0
1.0 6.3 4.166 1760 14.96 89.5 83.1 65 28
1.15 7.2 4.83 1747 17.38 89.3 84.2 90 0
1.25 7.8 5.3 1742 18.84 88 85.3 110 0
1.5 9.46 6.49 1727 22.8 86.2 86.1 0 0
