111-INSIDER-P - SymCom 1-Phase Pumpsaverplus 115V for Control Box

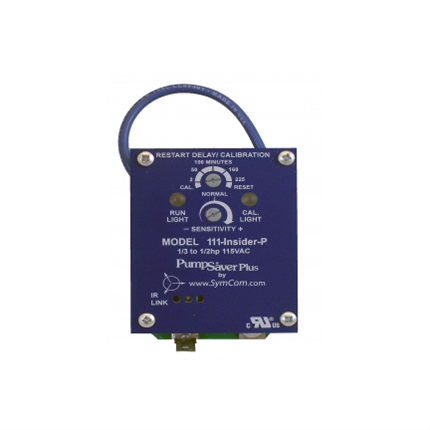

The Model 111-Insider-P
The Model 111-Insider-P single-phase PumpSaver®Plus fits in-side 1/3 and 1/2 hp 115V control boxes. The PumpSaver®Plus Mod-el 111-Insider-P is designed to protect single-phase pumps from dry well, dead head, jammed impeller and over and undervolt-age conditions.
A calibration adjustment allows the Insider-P to be calibrated to your specific pumping applications, thereby reducing the pos-sibility of false or nuisance tripping. A unique microcontroller-based voltage and current sensing circuit constantly monitors the incoming power for fluctuations, overcurrent and undercur-rent. When an abnormality, such as loss of suction is detected, the PumpSaver®Plus deactivates its output relay and directly disconnects the pump motor. The PumpSaver®Plus then begins its user-selectable restart delay (dry-well recovery) timer. When the timer counts down to zero or power is removed and reap-plied, the PumpSaver®Plus reactivates its output relay, allowing the pump to turn back on.
The 111-Insider-P communicates with a hand-held diagnostics tool called the Informer (sold separately). The Informer displays 15 parameters including calibration points, trip points, running points, and last faults. An IR Kit-12 (12" fiber optic kit) is in-cluded with each 111-Insider-P, allowing the Informer to access these parameters even when the 111-Insider-P is enclosed in a control box. This is valuable for troubleshooting the pump while it is running.
NOTE: The PumpSaverPlus models have a sensitivity adjustment for the dry-well trip point. After calibration is done, you can adjust the sensitivity for the dry-well/dead-head trip point from 70-90% of the full load. This makes the unit even more adaptable to varying pumping applications. If you have a very low producing well, you increase the sensitivity closer to the 90% mark, or if you have a very heavy producing well, you would decrease the sensitivity around the 70% mark.
