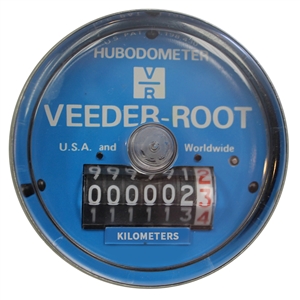

0777727-343 - Veeder-Root 343:1 Ratio Mechanical Kilometer Hubodometer
Veeder-Root hubodometers are used to record distance or area covered by rolling stock, primarily commercial Over-The-Road trailers, large buses and agricultural equipment.
They record every revolution in either direction. The design uses a counterbalance to prevent orbiting (which could stop measurement or undercount the distance) ensuring accurate counts at high speeds or rough terrain.
Features
- Records every revolution in both directions
- Hermetically sealed with inert gas and double o-ring protection
- Precision shaft supported front and rear with needle bearings
- Specified by revolution per mile/kilometer - not just tire size
- 300,000 mile/500,000 kilometer warranty (no time limit)
- Unique counterbalance design prevents orbiting - even on rough roads
- Magnifying crystal enlarges digits and angles up for easier reading
Specifications
- Speed: 1,000 RPM maximum
- Warranty: 300,000 miles or 500,000 kilometers
- Size of Figures: 0.187 in. high by 0.125 in. wide (4.75mm x 3.18mm)
- Color of Figures: Tenths wheel is red on white; other wheels are white on black
- Mounting: 0.500-20 UNF 2A threaded integral mounting stud
- Construction: Case: die-cast zinc; Figure Wheel, Pinion and Gears: acetal resin; Crystal: polycarbonate resin; Needle Bearings: steel; Main Shaft: hardened steel
 Click to view the Veeder-Root Hubodometer Tire Selection Guide in *.pdf format
Tire Size Selection GuideThe following tire sizes are recommended for Veeder-Root Hubodometer 0777727-343: - Armstrong Miracle Extra Traction 750-20
- Armstrong Super Heatmaster 750-20
- Bridgestone K Miler 825-20
- Bridgestone L Miler 825-20
- Bridgestone M716F 245/75R22.5
- Bridgestone Metro R187F 245/75R22.5
- Bridgestone R180 825R20
- Bridgestone R180 9R22.5
- Bridgestone R184 275/70R22.5
- Bridgestone R187 245/75R22.5
- Bridgestone R192 275/70R22.5
- Bridgestone R250F 245/75R22.5
- Bridgestone R294 275/70R22.5
- Bridgestone SLM 825-20
- Continental RS415 9R22.5
- Cooper RoadMaster XMT 750-20
- Cooper Super Road Service 750-20
- Dunlop SP156 9R22.5
- Dunlop SP160 9R22.5
- Firestone Longhauler 750-20
- Firestone Transport 1 750-20
- General AmeriSteel 825R20
- General AmeriSteel 9R22.5
- General M87 9R22.5
- General SD400 245/75R22.5
- Goodyear 4R 11.00-16SL
- Goodyear AWT 13.6-16.1
- Goodyear DR 11.00-16SL
- Goodyear DR 14L-16.1SL
- Goodyear Extra Grip HiMiler 750-20
- Goodyear Farms 19L-16.1SL
- Goodyear HiMiler CS2 825-20
- Goodyear SGTR 16.5L-16.1SL
- Goodyear Super HiMiler 750-20
- Goodyear Trailer Special 8-22.5
- Goodyear Unisteel G124 245/75R22.5
- Goodyear Unisteel G152 275/70R22.5
- Goodyear Unisteel G159 275/70R22.5
- Goodyear Unisteel G291 275/70R22.5
- Goodyear Unisteel G391 275/70R22.5
- Hankook F26 275/70R22.5
- Hercules HDTL 750-20
- Hercules Hercumile 11 750-20
- Kelly HiWay Armor Trac 825-20
- Lee/Star Milemark Rib 11 825-20
- Michelin PXDU 235/80R22.5
- Michelin PXZA 275/70R22.5
- Michelin PXZU-4 235/80R22.5
- Michelin XM+S4 9R22.5
- Michelin XZA 9R22.5
- Michelin XZE 9R22.5
- Michelin XZU2 275/70R22.5
- Michelin XZU-2 275/70R22.5
- Michelin XZU-4 235/80R22.5
- Michelin XZY 825R20
- Sumitomo ST508 825R20
- Sumitomo ST727 825R20
- Toyo M102Z 275/70R22.5
- Toyo M87 825R20
- Toyo M87 9R22.5
- Yokohama RY103 11/70R22.5
- Yokohama RY103 245/75R22.5
- Yokohama RY103 275/70R22.5
- Yokohama Y785R 825R20
- Yokohama Y785R 9R22.5
|
|
|
 |
|
 |
|
