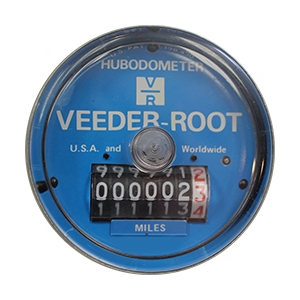

0777717-624 - Veeder-Root 624:1 Ratio Mechanical Mile Hubodometer
Veeder-Root hubodometers are used to record distance or area covered by rolling stock, primarily commercial Over-The-Road trailers, large buses and agricultural equipment.
They record every revolution in either direction. The design uses a counterbalance to prevent orbiting (which could stop measurement or undercount the distance) ensuring accurate counts at high speeds or rough terrain.
Features
- Records every revolution in both directions
- Hermetically sealed with inert gas and double o-ring protection
- Precision shaft supported front and rear with needle bearings
- Specified by revolution per mile/kilometer - not just tire size
- 300,000 mile/500,000 kilometer warranty (no time limit)
- Unique counterbalance design prevents orbiting - even on rough roads
- Magnifying crystal enlarges digits and angles up for easier reading
Specifications
- Speed: 1,000 RPM maximum
- Warranty: 300,000 miles or 500,000 kilometers
- Size of Figures: 0.187 in. high by 0.125 in. wide (4.75mm x 3.18mm)
- Color of Figures: Tenths wheel is red on white; other wheels are white on black
- Mounting: 0.500-20 UNF 2A threaded integral mounting stud
- Construction: Case: die-cast zinc; Figure Wheel, Pinion and Gears: acetal resin; Crystal: polycarbonate resin; Needle Bearings: steel; Main Shaft: hardened steel
 Click to view the Veeder-Root Hubodometer Tire Selection Guide in *.pdf format
Tire Size Selection GuideThe following tire sizes are recommended for Veeder-Root Hubodometer 0777717-624: - Bridgestone R180 825R15
- Bridgestone R180 9R17.5
- Bridgestone R184 215/70R17.5
- Bridgestone R260 875R16.5
- Bridgestone R265 225/75R16
- Continental HS41 245/70R19.5
- Continental HS62 825R15
- Continental RS415N 245/70R19.5
- Cooper C120 875R16.5
- Cooper Super Road Master 875-16.5
- Dunlop Radial Rover A/T 225/75R16
- Dunlop Radial Rover HLT 225/75R16
- Firestone ATX 225/75R15
- Firestone Transport 700-15
- Firestone XR4 825R15
- General Ameri 550AS 225/75R16
- General Ameri 550AS 25/75R16
- General Ameri 550AS 875R16.5
- General AmeriSteel LPT 825R15
- General Big Foot 225/75R16
- General XP2000 ST 225/75R16
- Goodyear Unisteel G159 245/70R19.5
- Goodyear Unisteel G159LT 225/75R16
- Goodyear Unisteel G159LT 8R19.5
- Goodyear Unisteel G171LT 875R16.5
- Goodyear Unisteel G18 825R15
- Goodyear Unisteel G291 245/70R19.5
- Goodyear Wrangler AT 255/85R16
- Goodyear Wrangler LT 875R16.5
- Michelin LTX 235/75R16
- Michelin LTX LT235/75R16
- Michelin PXCH4 225/75R16
- Michelin PXZ 225/75R16
- Michelin XCA 700R15
- Michelin XTA 9R17.5
- Michelin XZZ 825R15
- Sumitomo ST727 825R15
- Sumitomo ST7LPT 825-15
- Taurus RV1 825R15
- Toyo M410 30x950R15
- Toyo M55 225/75R16
- Toyo M606 225/75R16
- Toyo M74(T) 825R15
- Toyo M75Z 245/70R19.5
- Toyo M82 875R16
- Toyo M82 875R16.5
- Yokohama Y780R 825R15
- Yokohama Y785R 825R15
- Yokohama Y785R 9R17.5
|
|
|
 |
|
 |
|
