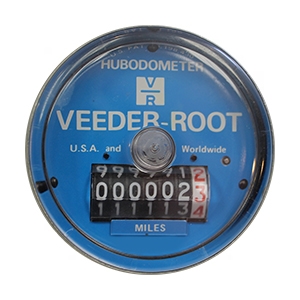

0777716-494 - Veeder-Root 494:1 Ratio Mechanical Mile Hubodometer

0777716-494
0777716-494

Price: $161.00
Returnable: NOT RETURNABLE
Manufacturer SKU: 0777716-494


Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Part Number: 0777716-494
Qty:

Description Documents & Downloads

0777716-494 - Veeder-Root 494:1 Ratio Mechanical Mile Hubodometer

Veeder-Root hubodometers are used to record distance or area covered by rolling stock, primarily commercial Over-The-Road trailers, large buses and agricultural equipment.

They record every revolution in either direction. The design uses a counterbalance to prevent orbiting (which could stop measurement or undercount the distance) ensuring accurate counts at high speeds or rough terrain.

Features

  • Records every revolution in both directions
  • Hermetically sealed with inert gas and double o-ring protection
  • Precision shaft supported front and rear with needle bearings
  • Specified by revolution per mile/kilometer - not just tire size
  • 300,000 mile/500,000 kilometer warranty (no time limit)
  • Unique counterbalance design prevents orbiting - even on rough roads
  • Magnifying crystal enlarges digits and angles up for easier reading

Specifications

  • Speed: 1,000 RPM maximum
  • Warranty: 300,000 miles or 500,000 kilometers
  • Size of Figures: 0.187 in. high by 0.125 in. wide (4.75mm x 3.18mm)
  • Color of Figures: Tenths wheel is red on white; other wheels are white on black
  • Mounting: 0.500-20 UNF 2A threaded integral mounting stud
  • Construction: Case: die-cast zinc; Figure Wheel, Pinion and Gears: acetal resin; Crystal: polycarbonate resin; Needle Bearings: steel; Main Shaft: hardened steel
pdfClick to view the Veeder-Root Hubodometer Tire Selection Guide in *.pdf format
